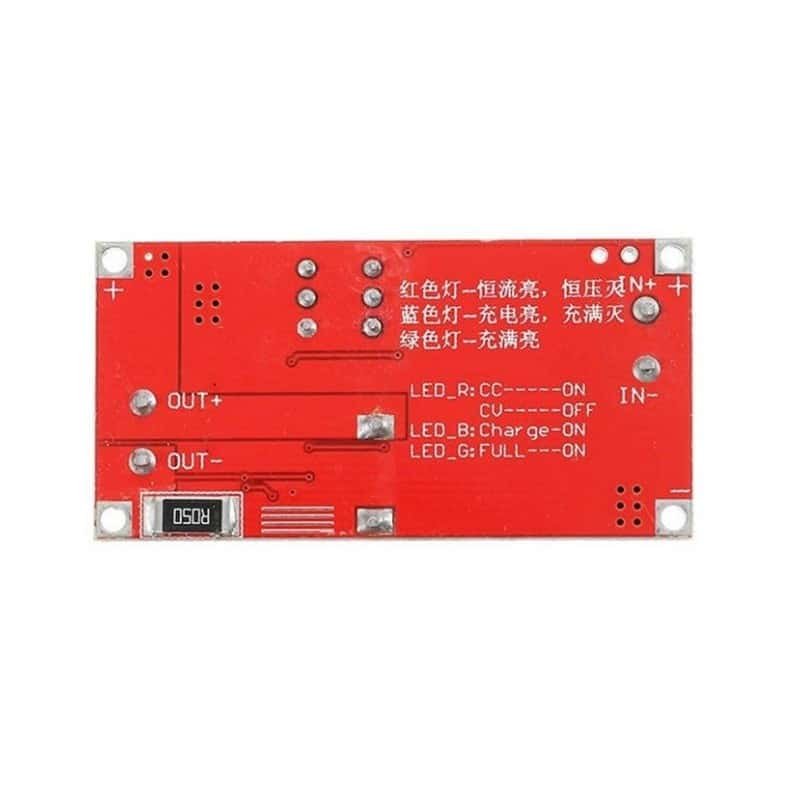

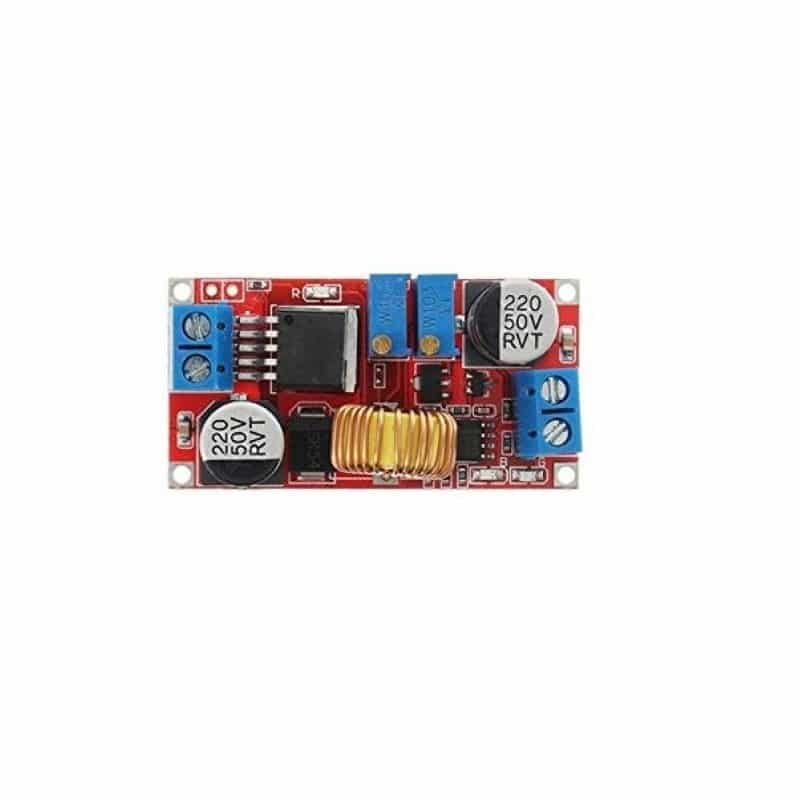

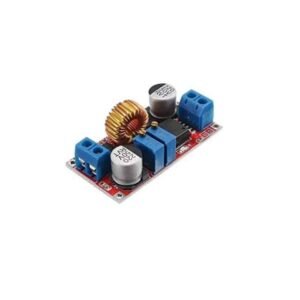

XL4015 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module

XL4015 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module

The XL4015 CC/CV power module is a high-current DC-DC step-down (buck) converter designed to operate in both constant voltage (CV) and constant current (CC) modes. This makes it ideal for LED driving and lithium battery charging applications. With up to 5A output current and adjustable voltage and current limits, the module offers efficient, stable, and reliable power regulation.

Click here to view related products

Features

• Converter Type: DC-DC Step-Down (Buck)
• Controller IC: XL4015
• Operating Modes: Constant Voltage (CV) & Constant Current (CC)
• Input Voltage Range: 5V – 36V DC
• Output Voltage Range: 1.25V – 35V DC (adjustable)
• Maximum Output Current: Up to 5A (current adjustable)
• High efficiency switching design
• Independent voltage and current adjustment potentiometers
• Built-in over-current, over-temperature, and short-circuit protection
• Large inductor and heat-sink support for stable high-current operation

Applications

• High-power LED drivers
• Lithium-ion / Li-Po battery chargers
• Adjustable DC bench power supplies
• Motor and load current limiting
• DIY, laboratory, and educational electronics projects
