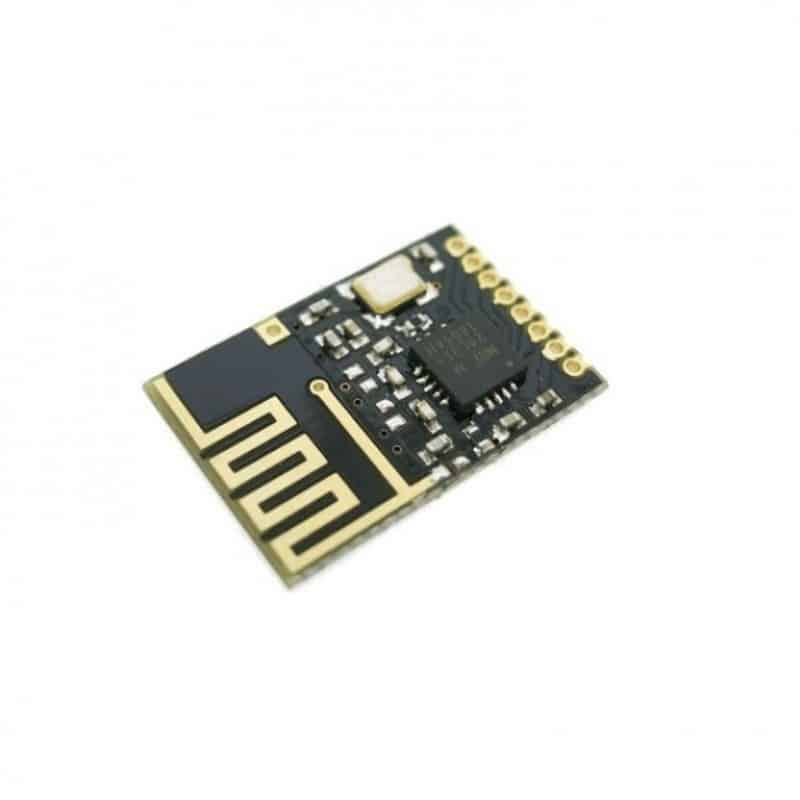

Ai Thinker NF-03 Wireless Transceiver is a 2.4G wireless module with a small size and on-board antenna. It has a high airspeed (up to 2Mbps), an SPI interface, and a pure hardware module. It has high stability, high-cost performance, and good spectrum test characteristics. , small size, using all industrial-grade components.
NF-03 can be widely used in various Internet of Things applications and is suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low-power self-organizing network wireless sensor network nodes. The ideal solution for IoT applications
Features:-
1. Built-in 2.4G antenna, compact size, easy to use
2. Support data reception of six channels
3. Modulation method: GFSK / FSK
4. Support 2Mbps/1Mbps/250Kbps data rate
5.Internally integrated high PSRR LDO
6. Wide power supply voltage range: 1.9~3.6V
7. Average emission current as low as 110mA
8.Receiving sensitivity: <-83dBm @ 2MHz
9. Maximum transmit power: +7dBm
10. With four-wire SPI interface, the speed can up to 10MHz
11. Internal integrated intelligent ARQ baseband protocol engine
12. Transceiver data hardware interrupt output
13. Support 1bit RSSI output
14.Receiving sensitivity: <-83dBm @ 2MHz
specifications:-
| Module model | NF-03 |
| Modulation method | GFSK / FSK |
| voltage range | 1.9-3.6V |
| Antenna | Onboard PCB antenna, gain 2dBi |
| Data rate | 2Mbps / 1Mbps / 250Kbps |
| Package | SMD-8 |
| Frequency Range | 2400MHz~2525MHz |
| Max Transmit Power | 71 dBm |
| Power Supply | 1.9~3.6V, Typical 3.3V |
| emission curernt | 25mA(7dBm) |
| receiving current | 15mA (2Mbps) |
| Communication Interface | SPI (up to 10Mbps) |
| Operating temperature | -20 C ~ 85 C |
| Length(mm) | 18 |
| Width(mm) | 12 |
| Height(mm) | 2 |
| Weight (gm) | 3 |
* product image for illustration purposes only. actual product may vary.
