Ai Thinker NF-01-S Wireless Transceiver Module

98.00 + GST

Share with Friends

Ai Thinker NF-01-S Wireless Transceiver is a 100mW power 2.4G wireless module, high-altitude rate (up to 2Mbps), using SPI interface, send and receive in one pure hardware module; high stability, cost performance, Volume, use of all-industry components.

NF-01-S can be widely used in a variety of networking occasions, suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low power consumption network of wireless sensor networks, is the ideal solution of Internet of Things application.

Features:-

  • DIP-8 ultra-small package, built-in 2.4G antenna, small size, easy to use
  • Supports data reception for six channels
  • Supports common modulation such as GFSK / FSK
  • Supports 2Mbps / 1Mbps / 250Kbps data rate
  • Multi-frequency: 126 frequency, to meet the needs of multi-point communication and frequency hopping communication
  • Internal integration of high PSRR LDOs
  • Wide supply voltage range: 1.9 ~ 3.6V
  • Average emission current as low as 110mA
  • Receiver sensitivity: -96dBm @ 250kbps
  • Maximum transmit power: + 7dBm
  • Four-wire SPI interface for up to 10MHz
  • Internal Integrated Smart ARQ Baseband Protocol Engine
  • Transmit data hardware interrupt output
  • Supports 1bit RSSI output

specifications:-

Module Model NF-01-S
Package DIP-8
Frequency Range 2400MHz~2525MHz
Max Transmitting Power 71 dBm
Power Supply 1.9~3.6V, Typical 3.3V
Antenna Onboard PCB antenna, gain 2dBi
Receiving sensitivity -96dBm@250kbps
Communication Interface SPI (The maximum rate of up to 10Mbps)
Operating temperature -20 ~ 85
Average current Emission current: 25mA(7dBm)
Receive current: 15mA (2Mbps)
Shutdown: current 1.0uA(Shutdown Mode)
Length (mm) 28.6
Width (mm) 15.3
Height (mm) 3.2 mm
Weight (gm) 3

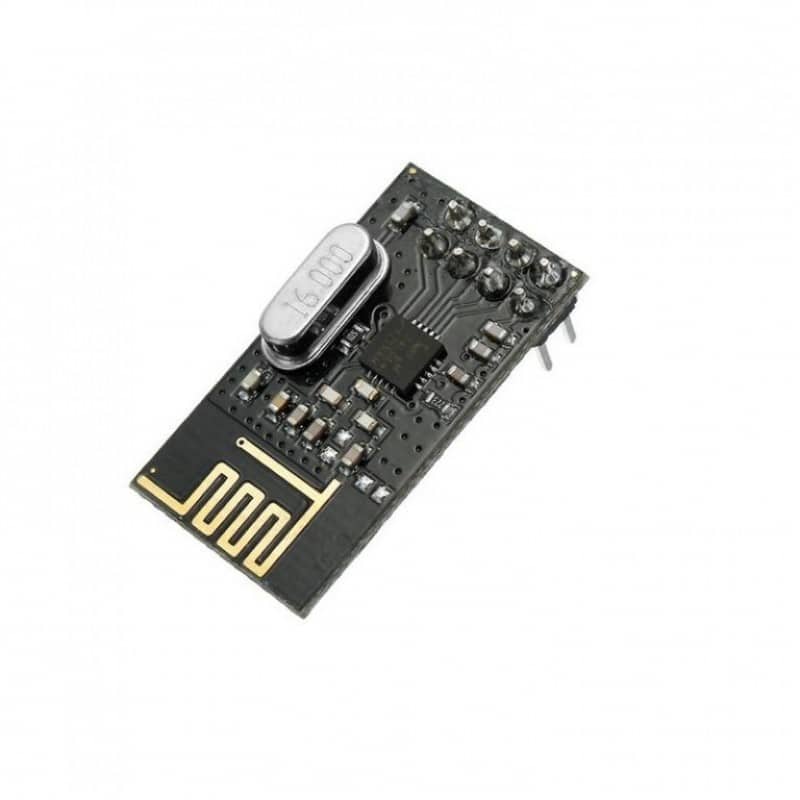

* product image for illustration purposes only. actual product may vary.
