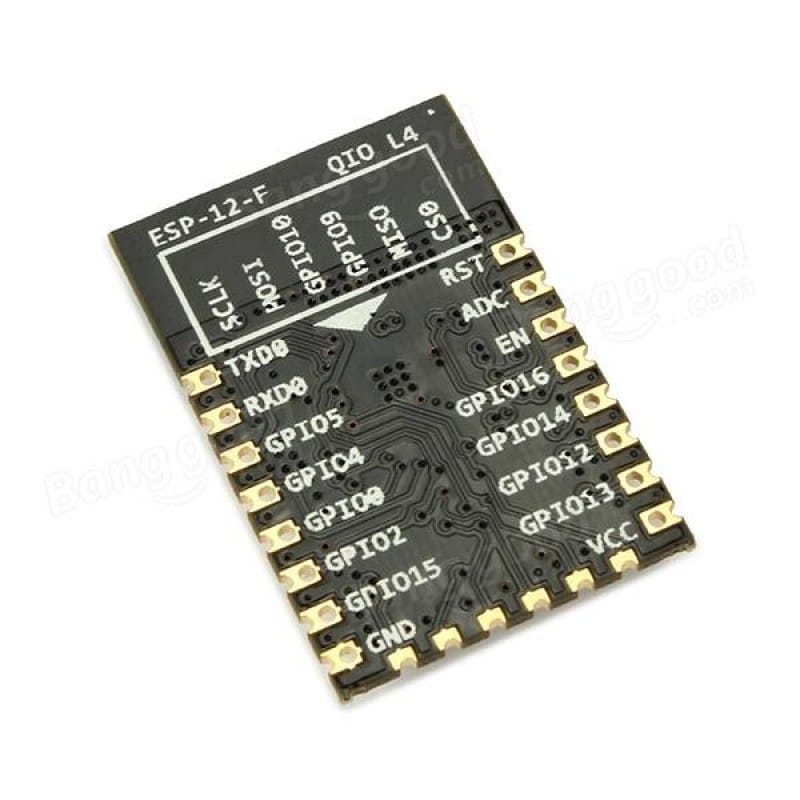

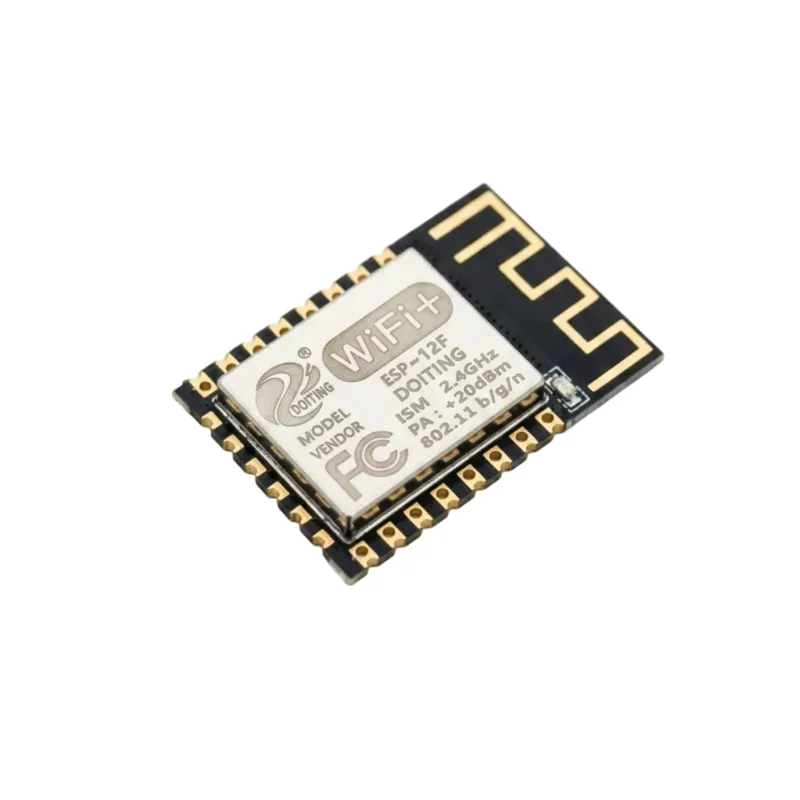

ESP-12F ESP8266 Wifi Wireless Module

ESP-12F ESP8266 Wifi Wireless Module

The ESP-12F Wi-Fi Module is a highly integrated Wi-Fi and microcontroller solution based on the ESP8266EX SoC, offering excellent performance, reliability, and compactness for IoT and wireless networking applications.

It is an upgraded version of the ESP-12E, featuring an improved PCB antenna design, enhanced signal stability, and better RF performance. The ESP-12F integrates the full TCP/IP stack, 32-bit Tensilica LX106 processor, and 4MB flash memory, making it ideal for standalone IoT systems or as a Wi-Fi adapter for microcontrollers like Arduino, STM32, and Raspberry Pi.

With support for multiple communication interfaces (UART, SPI, I²C, I²S, ADC, PWM) and 11 GPIO pins, the ESP-12F provides excellent flexibility for various embedded and automation projects.

Click here to view related products

Features:

• Chipset: ESP8266EX (Tensilica 32-bit LX106 CPU, 80/160 MHz)
• Operating Voltage: 3.0V – 3.6V (recommended 3.3V)
• Flash Memory: 4MB (SPI Flash)
• Wi-Fi Standard: IEEE 802.11 b/g/n (2.4GHz)
• Wi-Fi Modes: Station (STA), SoftAP, and STA+AP
• Antenna: On-board high-performance PCB antenna (improved from ESP-12E)
• Interfaces: UART, SPI, I²C, I²S, ADC, PWM, GPIO
• GPIO Pins: 11 user-accessible pins
• Network Protocols: TCP/IP, UDP, HTTP, FTP, DHCP, DNS
• Baud Rate: 9600 – 115200 bps (default 115200)
• Power Consumption:
• Active mode: ~80mA average
• Modem sleep: ~20mA
• Deep sleep: <10µA
• Security: WPA/WPA2 Encryption
• Operating Temperature: -40°C to +125°C
• Dimensions: 24mm × 16mm × 3mm
• Certifications: FCC, CE, ROHS (depending on manufacturer)

Advantages over ESP-12E:

• Improved PCB antenna design for stronger and more stable Wi-Fi signal
• Better RF shielding for noise immunity
• Enhanced signal range and consistency
• Fully backward-compatible pinout

Applications:

• IoT (Internet of Things) devices and sensor networks
• Home automation systems (smart lights, switches, thermostats)
• Wireless data communication and telemetry systems
• Smart appliances and industrial monitoring
• DIY Electronics and educational IoT development projects
• Remote device control using mobile apps or cloud services
