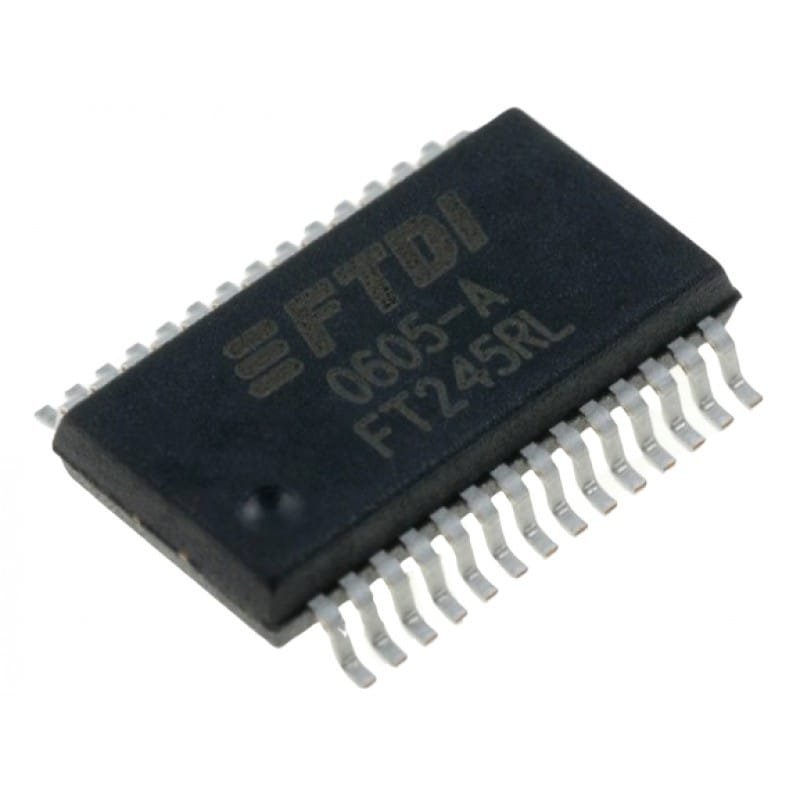

FT245RL USB To Parallel FIFO Interface IC SMD SSOP 28 Package

FT245RL USB To Parallel FIFO Interface IC SMD SSOP 28 Package

The FT245RL is a highly integrated USB to parallel FIFO interface IC that allows easy communication between a USB host and a parallel data interface. It implements the USB protocol and presents an 8-bit parallel FIFO-style interface, enabling microcontrollers, FPGAs, and logic devices to exchange data with a PC over USB without the need to develop USB firmware.

The device includes an internal USB transceiver, clock generator, EEPROM, and FIFO buffers, significantly reducing external component count. The SSOP-28 surface-mount package makes the FT245RL suitable for compact and modern PCB designs while maintaining excellent performance and reliability.

Click here to view related products

Features

• USB 2.0 full-speed compliant
• Converts USB to 8-bit parallel FIFO interface
• No USB firmware programming required
• Integrated USB transceiver and clock generator
• Internal EEPROM for USB configuration
• FIFO buffer for smooth data transfer
• Supports data transfer rates up to USB full-speed limits
• Low external component count
• Bus-powered or self-powered operation
• SSOP-28 SMD package for compact PCB designs

Applications

• USB to parallel data converters
• FPGA and CPLD USB interfacing
• Microcontroller USB data communication
• Data acquisition systems
• USB-enabled test and measurement equipment
• Industrial control and automation systems
