IKCM20L60GA Dual In Line Intelligent Power Module 600V 20A Control Integrated Power System

IKCM20L60GA Dual In Line Intelligent Power Module 600V 20A Control Integrated Power System

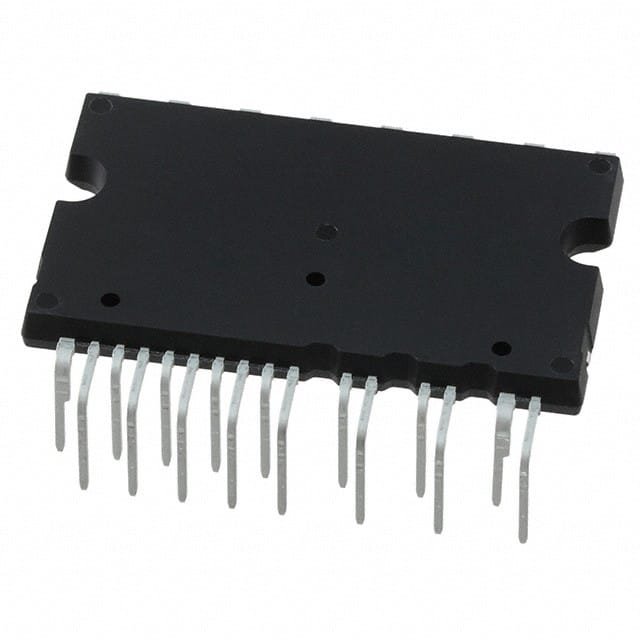

The IKCM20L60GA is a high-performance Intelligent Power Module (IPM) that integrates IGBTs, gate drivers, and protection circuitry into a single compact dual in-line package. Designed for efficient three-phase inverter and motor drive applications, it provides a complete control and power solution that enhances reliability and simplifies circuit design.

This module operates at 600V and delivers up to 20A output current, making it suitable for medium-power AC motor drives and industrial inverters. The IKCM20L60GA features built-in bootstrap diodes, under-voltage lockout (UVLO), over-current protection (OCP), and over-temperature protection (OTP). An NTC thermistor is integrated for temperature monitoring, ensuring safe and stable performance under varying load conditions.

Click here to view related products

Features

• Integrated 600V, 20A IGBT inverter with gate drivers
• Built-in bootstrap diodes for high-side drive supply
• Comprehensive protection: UVLO, OCP, OTP, and fault reporting
• Cross-conduction prevention for enhanced reliability
• Onboard NTC thermistor for precise thermal sensing
• Logic-level input compatible with 3.3V / 5V microcontrollers
• Compact Dual In-Line (DIP) package for easy PCB integration
• High efficiency and low electromagnetic interference (EMI)

Applications

• AC motor and BLDC motor drives
• Variable-speed industrial drives
• Home appliances (air conditioners, washing machines, refrigerators)
• Small pump and fan controllers
• Servo motor systems
• Compact inverters and power converters
