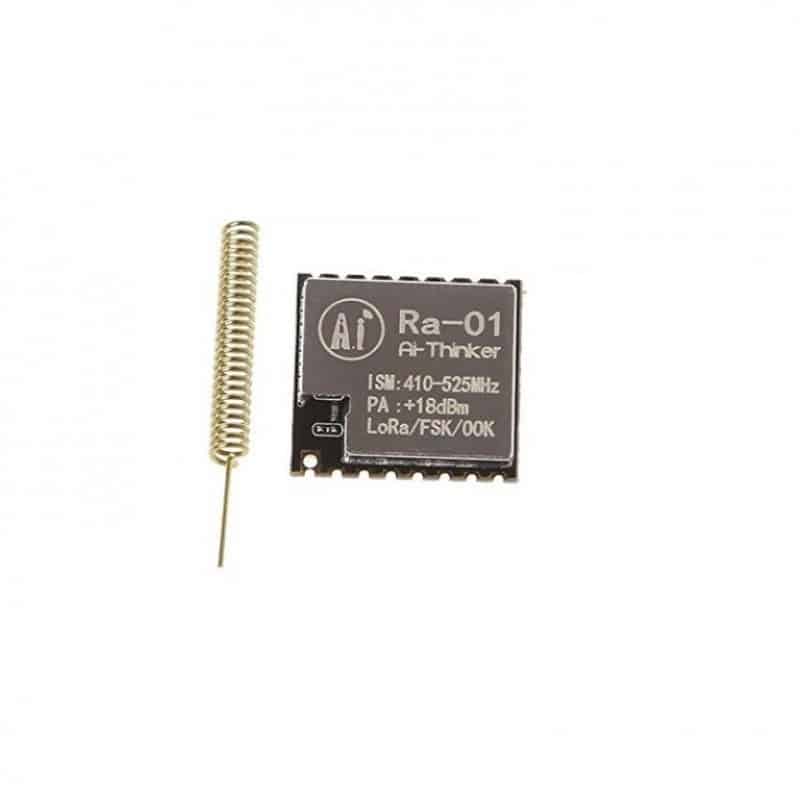

This LoRa 433MHz module designed by AI-THINKER, which based on the chip SX1278. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECHs patented LoRa modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa Modulation technology in anti-blocking and selection also has obvious advantages, to solve the traditional design can not take into account the distance, interference and power consumption.
Applications
- Automated Meter Reading.
- Home and Building Automation.
- Wireless Alarm and Security Systems.
- Industrial Monitoring and Control.
- Long-range Irrigation Systems.
Features:-
- LoRa spread spectrum communication
- +18dBm 10mW. Stable RF output power when the input voltage changed
- Half-duplex SPI communication
- Programmable bit rate can reach to 300kbps
- Support FSK, GFSK, MSK, GMSK, LoRaTM and OOKModulation Mode
- 127dB RSSI wave range.
- Automatically detect RF signal, CAD mode, and super high-speed AFC
- With CRC 256 bytes data engine
- Half hole (castellated hole) SMD package
- With metal shielding case
- Spring antenna
specifications:-
| Module Model | LoRa-Ra-01 |
| Package/Case | SMD-16 |
| Spectrum range | 410-525MHz |
| Programmable bit Rate | UP to 300Kbps |
| Frequency Range | 410-525 MHz |
| Antenna Length (mm) | 53 |
| Antenna Type | Spring |
| Input Supply Range (VDC) | 2.5 ~ 3.7 |
| Transmit Power (dBm) | 181 dBm (Max) |
| Operating Temperature (C) | -10 to 85 |

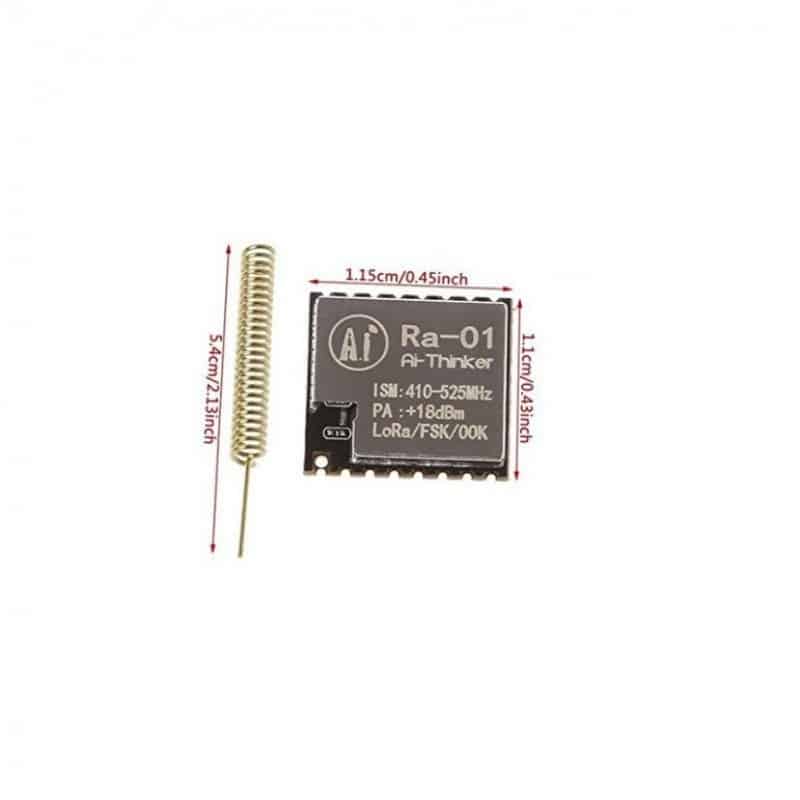

| Length (mm) | 18 |
| Width (mm) | 16 |
| Height (mm) | 3.3 |
| Weight (gm) | 6 |
* product image for illustration purposes only. actual product may vary.
