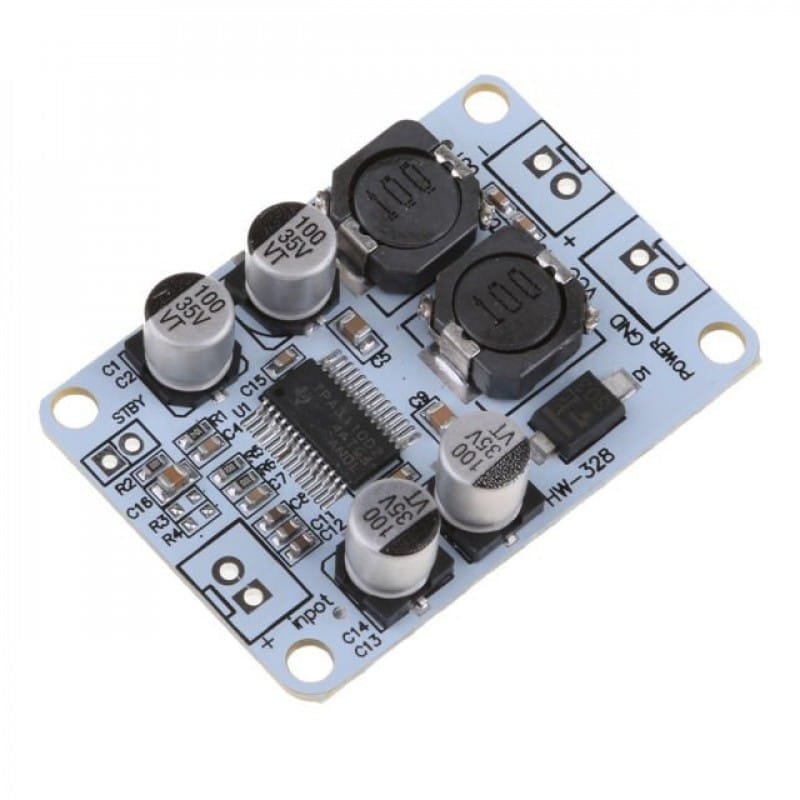

TPA3110 Mono Channel Digital Amplifier Board 30W Power Amplifier Module is useful in applications like: DIY Bluetooth speaker, home and car audio system modification.
Features:-
- Amplifier Chip: TPA3110.
- Working Voltage: DC 8-26V.
- Output Power: 1 x 30W.
- Applicable Speaker Impedance: 4/6/8 ohm(8 ohms Best).
- PCB Board Size: 44 x 30 x 10 (LxWxH)mm / 1.65 x 1.18in.
- Weight: 10 gm / 0.35oz.
- DC 8-26V TPA3110 PBTL Mono Digital Amplifier Board AMP Module 1x30W for Arduino.
- Single-channel digital power amplifier Board PBTL.
- Mono digital audio power amplifier chip.
- 30W output and low power consumption.
- Sound quality is very good by using this module.
- Applicable speaker impedance: 4/6/8 ohm(8 ohm is the best).
- Application: DIY Bluetooth speaker, home and car audio system modification.
Specifications:-
| Model | TPA3110 |
| Input Voltage (Volt) | 8 26 |
| Output Power (W) | 30 |
| Dimensions (mm) | 44 x 30 x 10 |
| Weight(gm) | 10 |
* product image for illustration purposes only. actual product may vary.
